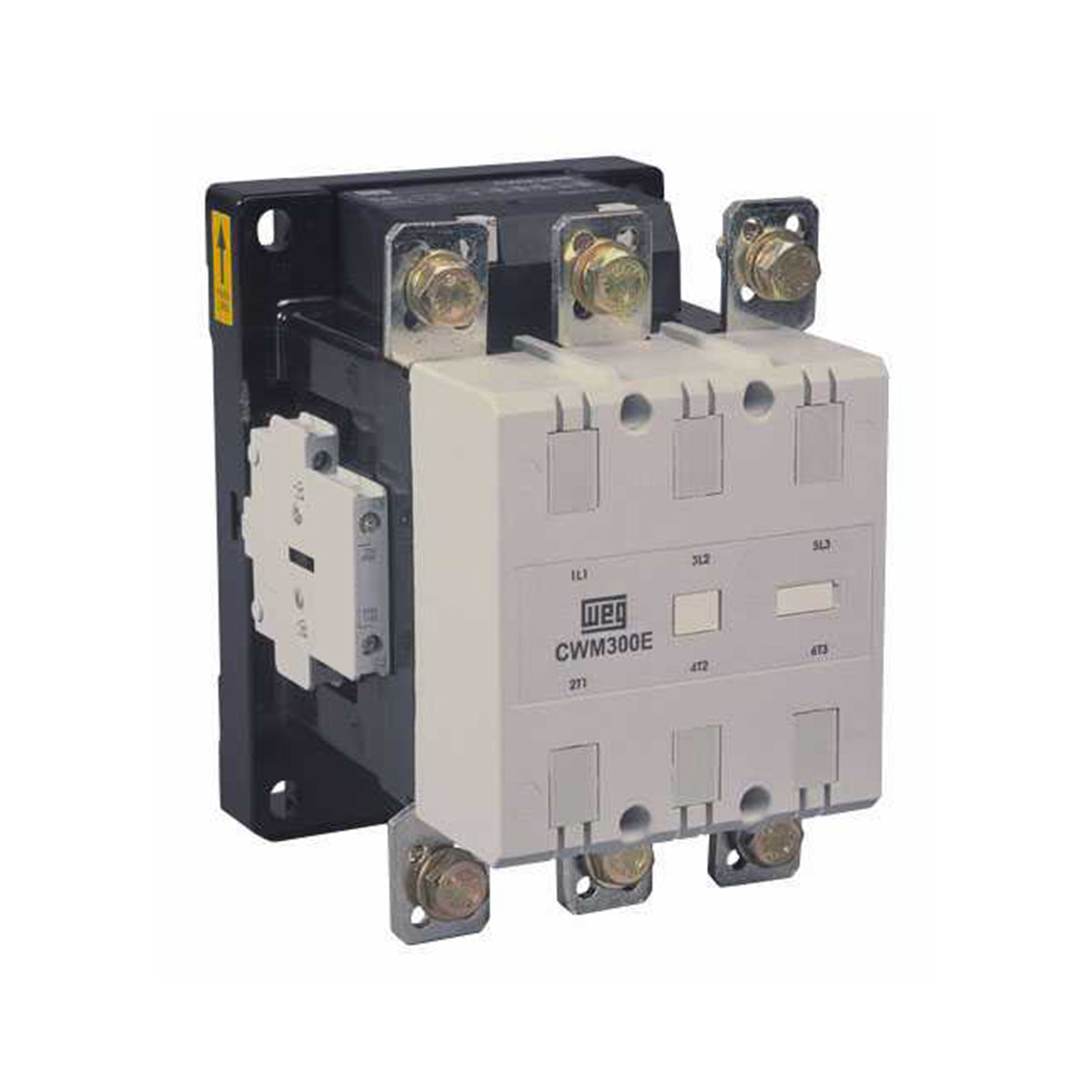

CWM300-22-30E02 Contactor – 300 A, 24-28V 50/60Hz-DC, 3 NO
CWM300-22-30E02 Contactor – 300 A, 24-28V 50/60Hz-DC, 3 NO
WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
Technical Specifications
| Rated Current | 300 A |
|---|---|
| Coil Voltage | 24-28V 50/60Hz-DC |
| Contact Configuration | 3 NO |
| Protection Rating | IP00 |
| Mechanical Lifespan | 10 million |
| Electrical Lifespan | 1 million |
| Insulation Voltage | 600 V |
| Dimensions | 200 mm (7.87 in) x 144 mm (5.67 in) x 181 mm (7.13 in) |
| WEG Catalog # | CWM300-22-30E02 |
Frequently Asked Questions
What applications is the CWM300-22-30E02 contactor designed for?
The WEG CWM300-22-30E02 contactor is designed for reliable motor switching in irrigation, pumping, HVAC, industrial automation, and lighting control applications.
What is the current rating of this contactor?
This contactor is rated at 300 A for AC-3 duty. It also supports 410 A for AC-1 resistive loads when available.
What coil voltage does this contactor require?
This contactor uses a 24-28V 50/60Hz-DC coil, making it compatible with common control circuit voltages.
What is the expected lifespan of this contactor?
This contactor is rated for 10 million mechanical operations and 1 million electrical operations under AC-3 duty.
Is this contactor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
