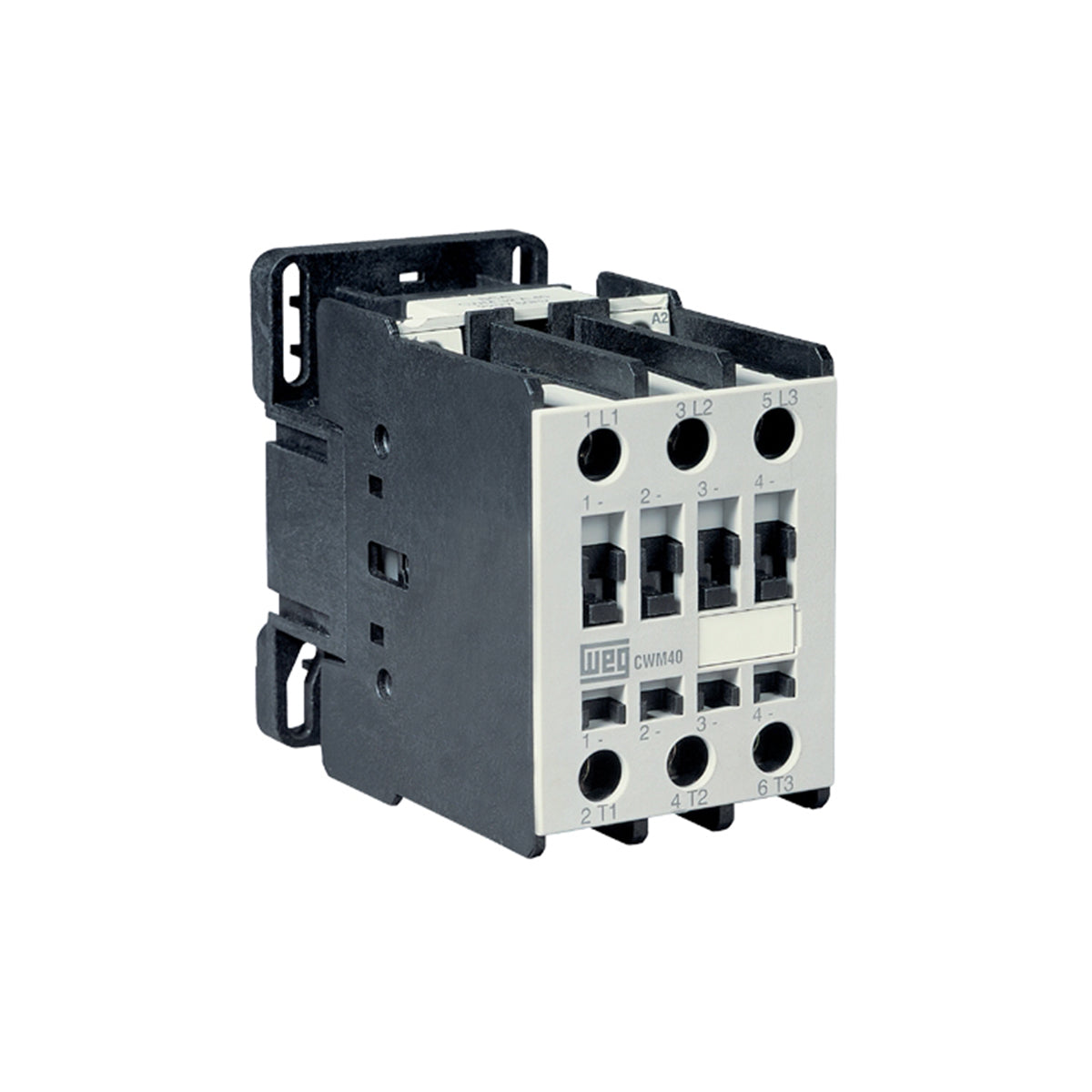

CWM40-11-30V47 Contactor – 40 A, 400-415V 50Hz/480V 60Hz, 3 NO
CWM40-11-30V47 Contactor – 40 A, 400-415V 50Hz/480V 60Hz, 3 NO
WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
Technical Specifications
| Rated Current | 40 A |
|---|---|
| Coil Voltage | 400-415V 50Hz/480V 60Hz |
| Contact Configuration | 3 NO |
| Protection Rating | IP10 |
| Mechanical Lifespan | 10 million |
| Electrical Lifespan | 1.2 million |
| Insulation Voltage | 600 V |
| Dimensions | 89 mm (3.50 in) x 55 mm (2.17 in) x 98 mm (3.86 in) |
| WEG Catalog # | CWM40-11-30V47 |
Frequently Asked Questions
What applications is the CWM40-11-30V47 contactor designed for?
The WEG CWM40-11-30V47 contactor is designed for reliable motor switching in irrigation, pumping, HVAC, industrial automation, and lighting control applications.
What is the current rating of this contactor?
This contactor is rated at 40 A for AC-3 duty. It also supports 60 A for AC-1 resistive loads when available.
What coil voltage does this contactor require?
This contactor uses a 400-415V 50Hz/480V 60Hz coil, making it compatible with common control circuit voltages.
What is the expected lifespan of this contactor?
This contactor is rated for 10 million mechanical operations and 1.2 million electrical operations under AC-3 duty.
Is this contactor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Details
| Catalog Number | CWM40-11-30V47 |
| Product Code | 10186210 |
