WEG
SKU:GPWW486JSKZ7

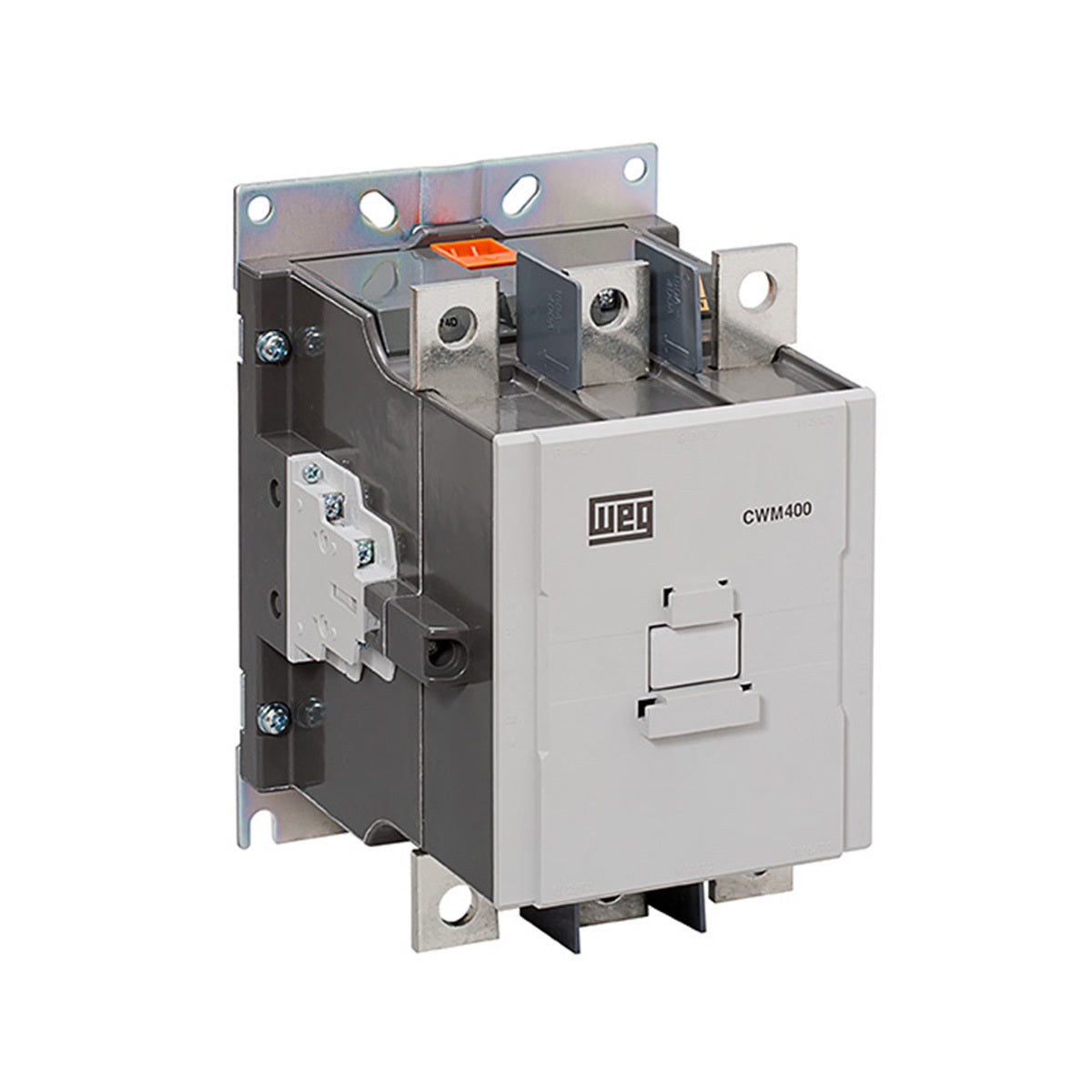

CWM400-22-30D82 Contactor – 400 A, 440-575V 50/60Hz, 3 NO
CWM400-22-30D82 Contactor – 400 A, 440-575V 50/60Hz, 3 NO
WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
Technical Specifications
| Rated Current | 400 A |
|---|---|
| Coil Voltage | 440-575V 50/60Hz |
| Contact Configuration | 3 NO |
| Protection Rating | IP00 |
| Mechanical Lifespan | 5 million |
| Electrical Lifespan | 0.5 million |
| Insulation Voltage | 600 V |
| Dimensions | 243 mm (9.57 in) x 209 mm (8.23 in) x 200.7 mm (7.90 in) |
| WEG Catalog # | CWM400-22-30D82 |
Frequently Asked Questions
What applications is the CWM400-22-30D82 contactor designed for?
The WEG CWM400-22-30D82 contactor is designed for reliable motor switching in irrigation, pumping, HVAC, industrial automation, and lighting control applications.
What is the current rating of this contactor?
This contactor is rated at 400 A for AC-3 duty. It also supports 520 A for AC-1 resistive loads when available.
What coil voltage does this contactor require?
This contactor uses a 440-575V 50/60Hz coil, making it compatible with common control circuit voltages.
What is the expected lifespan of this contactor?
This contactor is rated for 5 million mechanical operations and 0.5 million electrical operations under AC-3 duty.
Is this contactor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Details
| Catalog Number | CWM400-22-30D82 |
| Product Code | 12317735 |
