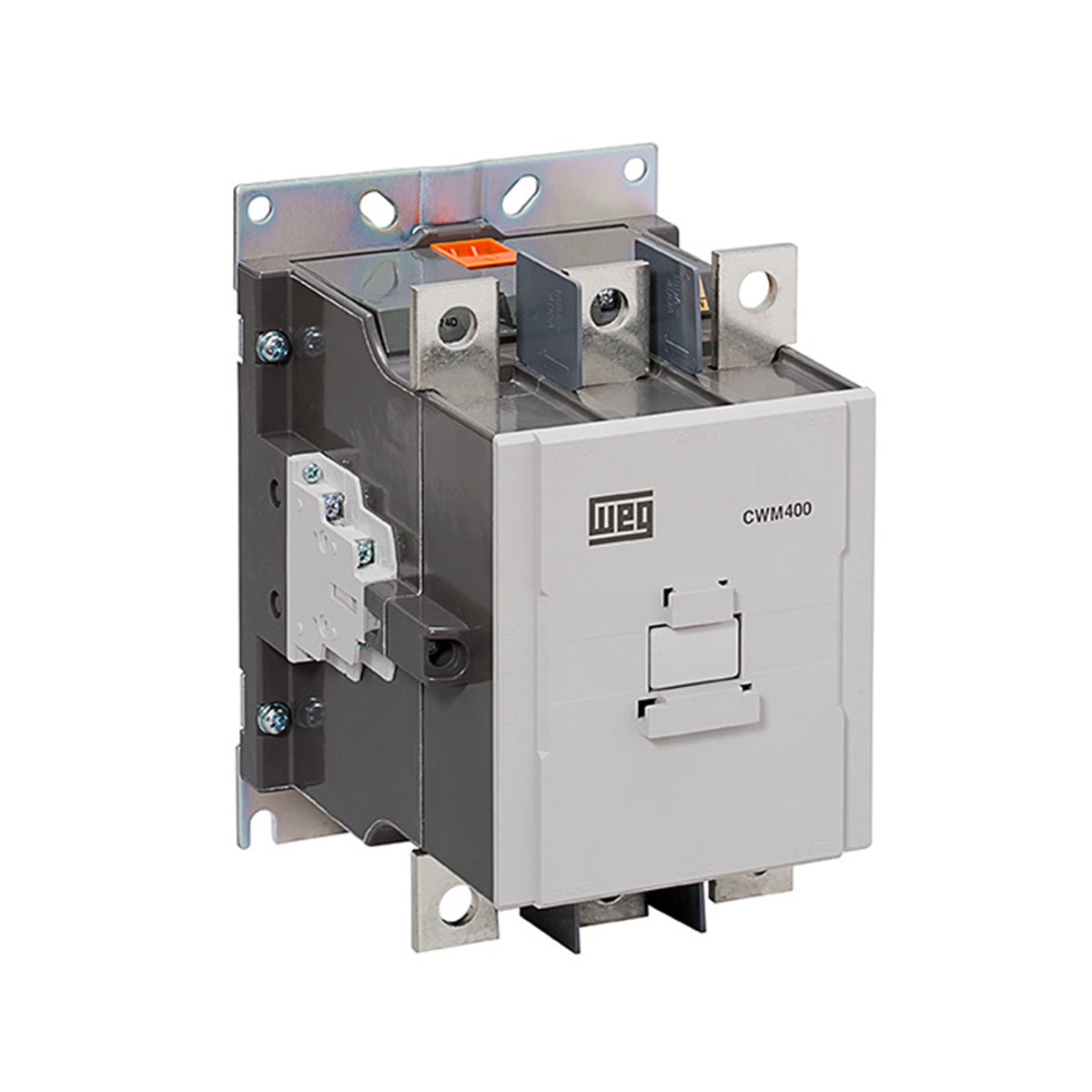

CWM Contactor – 400 A, 100-240V 50/60Hz/100-220V DC, 3 NO (CWM400-22-30E36)
CWM Contactor – 400 A, 100-240V 50/60Hz/100-220V DC, 3 NO (CWM400-22-30E36)
WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
Technical Specifications
| Rated Current | 400 A |
|---|---|
| Protection Rating | IP00 |
| Mechanical Lifespan | 5 million |
| Electrical Lifespan | 0.5 million |
| Insulation Voltage | 600 V |
| Dimensions | 243 mm (9.57 in) x 209 mm (8.23 in) x 200.7 mm (7.90 in) |
| WEG Catalog # | CWM400-22-30E36 |
Frequently Asked Questions
What applications is the CWM400-22-30E36 contactor designed for?
The WEG CWM400-22-30E36 contactor is designed for reliable motor switching in irrigation, pumping, HVAC, industrial automation, and lighting control applications.
What is the current rating of this contactor?
This contactor is rated at 400 A for AC-3 duty. It also supports 520 A for AC-1 resistive loads when available.
What is the expected lifespan of this contactor?
This contactor is rated for 5 million mechanical operations and 0.5 million electrical operations under AC-3 duty.
Is this contactor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Information
| Attribute | Value |
|---|---|
| Product Code | 11747363 |
| Catalog Number | CWM400-22-30E36 |
| Description | CONTACTOR CWM400-22-30E36 |
| Last Sync | October 24, 2026 at 05:01 PM |
| Category | Contactors |
Technical Specifications
| Specification | Value |
|---|---|
| Rated Insulation Voltage Ui Pollution Degree 3 IEC 60974 4 1 | 1000 V |
| Rated Insulation Voltage Ui Pollution Degree 3 UL CSA | 600 V |
| Rated Operational Frequency Minimum | 50 Hz |
| Rated Operational Frequency Maximum | 60 Hz |
| Mechanical Lifespan Ac | 5 million |
| Mechanical Lifespan Dc | 5 million |
| Electrical Lifespan Ac3 | 0.5 million |
| Degree Protection Main Term | IP00 |
| Degree Of Protection IP IEC 60529 Control Circuit | IP20 |
| Rated Current | 400 A |
| Rated Current Ac4 | 300 A |
| Rated Current Ac1 | 520 A |
| Rated Operational Voltage Ue IEC 60947 4 1 | 690 V |
| Rated Operational Voltage Ue UL CSA | 600 V |
| Height | 243 mm (9.57 in) |
| Width | 209 mm (8.23 in) |
| Depth | 200.7 mm (7.90 in) |
