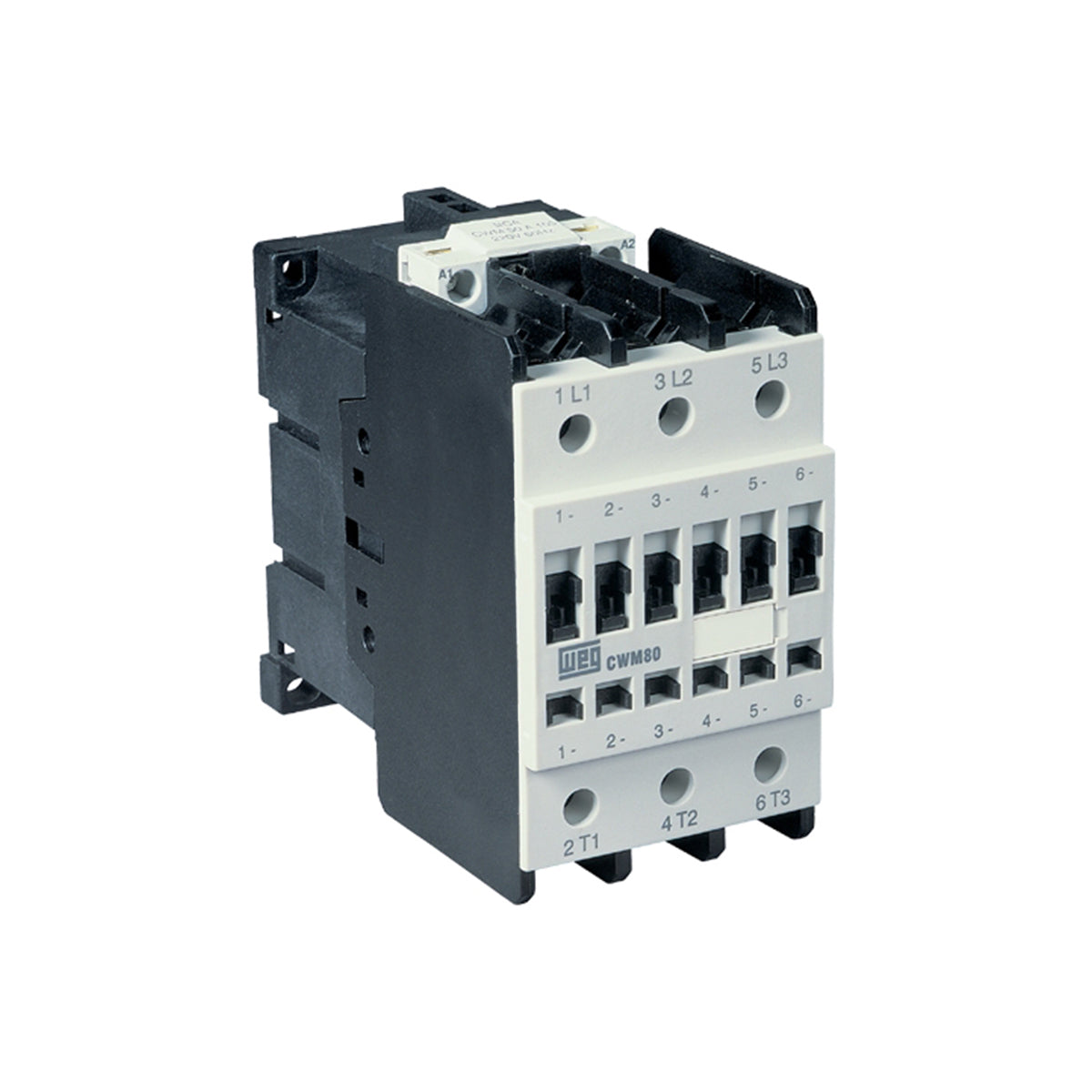

CWM80-00-30V10 Contactor – 80 A, 42V 50Hz/48V 60Hz, 3 NO
CWM80-00-30V10 Contactor – 80 A, 42V 50Hz/48V 60Hz, 3 NO
WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
Technical Specifications
| Rated Current | 80 A |
|---|---|
| Coil Voltage | 42V 50Hz/48V 60Hz |
| Contact Configuration | 3 NO |
| Protection Rating | IP10 |
| Mechanical Lifespan | 10 million |
| Electrical Lifespan | 1.1 million |
| Insulation Voltage | 600 V |
| Dimensions | 116.5 mm (4.59 in) x 66 mm (2.60 in) x 116 mm (4.57 in) |
| WEG Catalog # | CWM80-00-30V10 |
Frequently Asked Questions
What applications is the CWM80-00-30V10 contactor designed for?
The WEG CWM80-00-30V10 contactor is designed for reliable motor switching in irrigation, pumping, HVAC, industrial automation, and lighting control applications.
What is the current rating of this contactor?
This contactor is rated at 80 A for AC-3 duty. It also supports 110 A for AC-1 resistive loads when available.
What coil voltage does this contactor require?
This contactor uses a 42V 50Hz/48V 60Hz coil, making it compatible with common control circuit voltages.
What is the expected lifespan of this contactor?
This contactor is rated for 10 million mechanical operations and 1.1 million electrical operations under AC-3 duty.
Is this contactor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
