WEG
SKU:K8HAHGDW6CV3

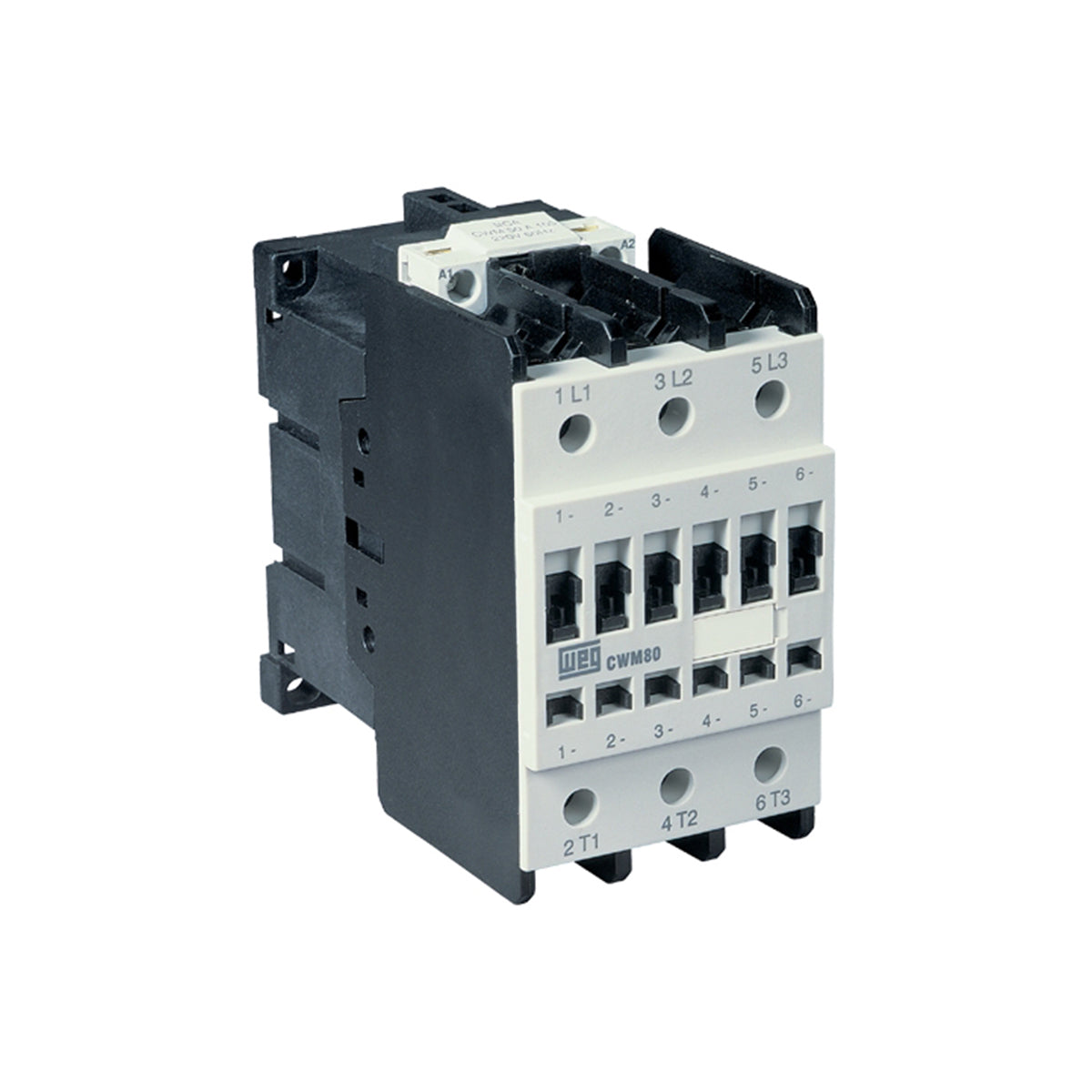

CONTACTOR CWM80-11-30V18
CONTACTOR CWM80-11-30V18
WEG’s contactors present high technology and safety, and easy installation. Besides, its enclosed construction according to VDE 0106, the UL approval, and its easy access connections for one or two conductors.
Regular price
$129.25
Regular price
Sale price
$129.25
Quantity
This product is discounted once added to cart
Couldn't load pickup availability
Product Information
| Attribute | Value |
|---|---|
| Product Code | 10045529 |
| Catalog Number | CWM80-11-30V18 |
Technical Specifications
| Specification | Value |
|---|---|
| Rated Insulation Voltage Ui Pollution Degree 3 IEC 60974 4 1 | 1000 V |
| Rated Insulation Voltage Ui Pollution Degree 3 UL CSA | 600 V |
| Rated Operational Frequency Minimum | 25 Hz |
| Mechanical Lifespan Ac | 10 million |
| Mechanical Lifespan Dc | 10 million |
| Electrical Lifespan Ac3 | 1.1 million |
| Degree Protection Main Term | IP10 |
| Degree Of Protection IP IEC 60529 Control Circuit | IP20 |
| Rated Current | 80 A |
| Rated Current Ac4 | 37 A |
| Rated Current Ac1 | 110 A |
| Rated Operational Voltage Ue IEC 60947 4 1 | 1000 V |
| Rated Operational Voltage Ue UL CSA | 600 V |
| Height | 116.5 mm (4.59 in) |
| Width | 66 mm (2.60 in) |
| Depth | 116 mm (4.57 in) |
