WEG
SKU:FVR6RVPEK2ZY

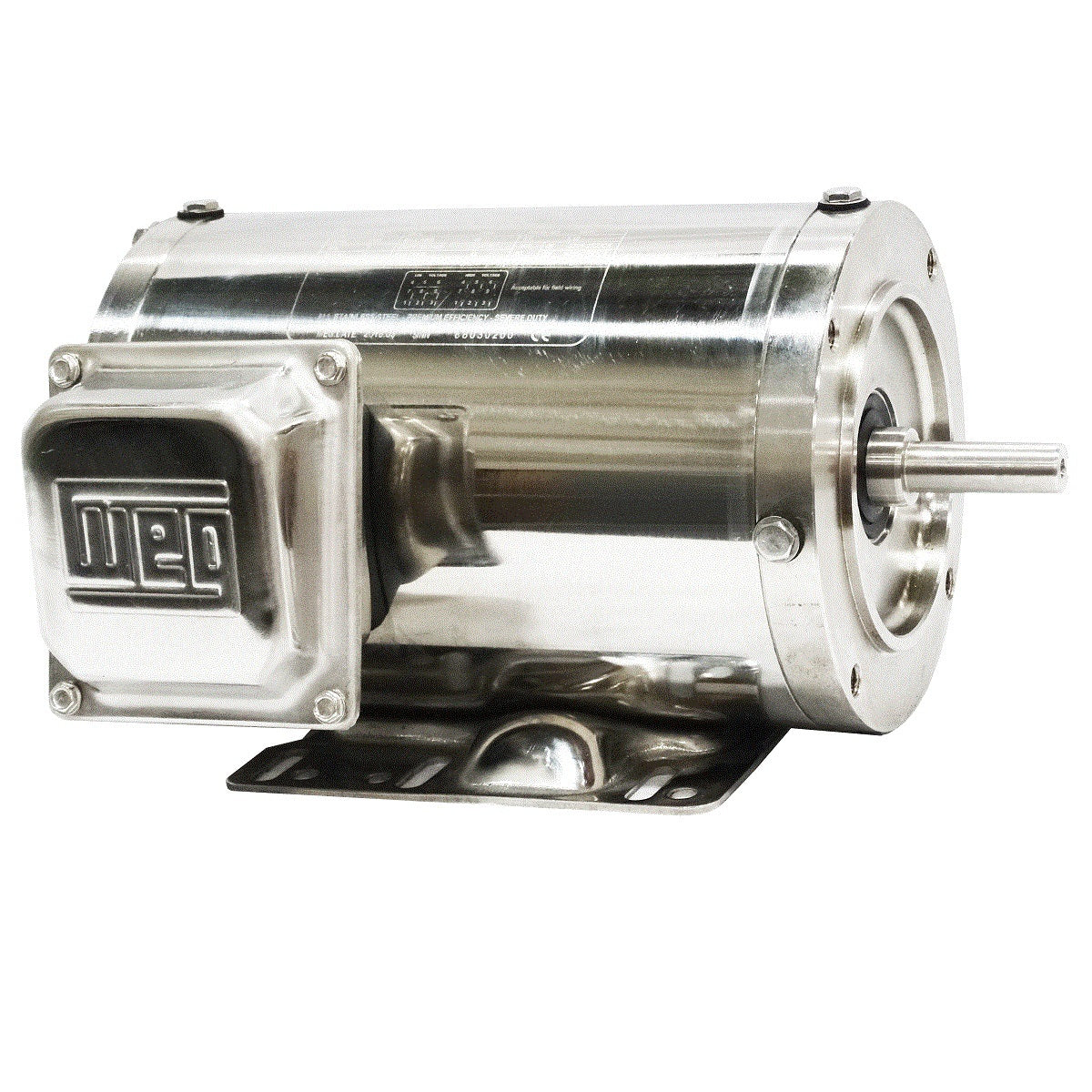

Shark NEMA Premium Efficiency 1 HP 04 143TC 230/460 V 60 Hz-TENV-Foot-mounted
Shark NEMA Premium Efficiency 1 HP 04 143TC 230/460 V 60 Hz-TENV-Foot-mounted
Shark NEMA Premium Efficiency 1 HP 04 143TC 230/460 V 60 Hz-TENV-Foot-mounted
Technical Specifications
| Horsepower | 1 |
|---|---|
| Voltage | 230/460 V |
| Frame Size | 143TC |
| Enclosure | TENV |
| Mounting | Foot-mounted |
| RPM | 1800 rpm |
| Poles | 04 |
| Efficiency | NEMA Premium Efficiency |
| Frequency | 60 Hz |
| Protection Rating | IP56 |
| Frame Material | Stainless steel |
| WEG Catalog # | 00118NT3ESS143TC |
Frequently Asked Questions
What applications is the Shark NEMA Premium Efficiency 1 HP 04 143TC 230/460 V 60 Hz-TENV-Foot-mounted designed for?
The WEG Shark NEMA Premium Efficiency 1 HP 04 143TC 230/460 V 60 Hz-TENV-Foot-mounted is engineered for harsh washdown environments including irrigation, pumping, fertigation, dairy operations, and food processing facilities where exposure to moisture, chemicals, and frequent washdowns is expected.
What is the enclosure rating on this motor?
This motor features a TENV enclosure, providing Totally Enclosed Non-Ventilated - sealed construction with no external ventilation, ideal for environments where fan-blown debris is a concern.
What horsepower is this motor rated for?
This motor is rated at 1 HP, operating on 230/460 V power at 60 Hz.
What voltage does this motor require?
This motor operates on 230/460 V, 04-pole, 60 Hz power supply.
Is this motor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Details
| Catalog Number | 00118NT3ESS143TC |
| Product Code | 14418830 |
| Certifications | NEMA MG-1 |
