WEG
SKU:VSM6BUCHHXMW

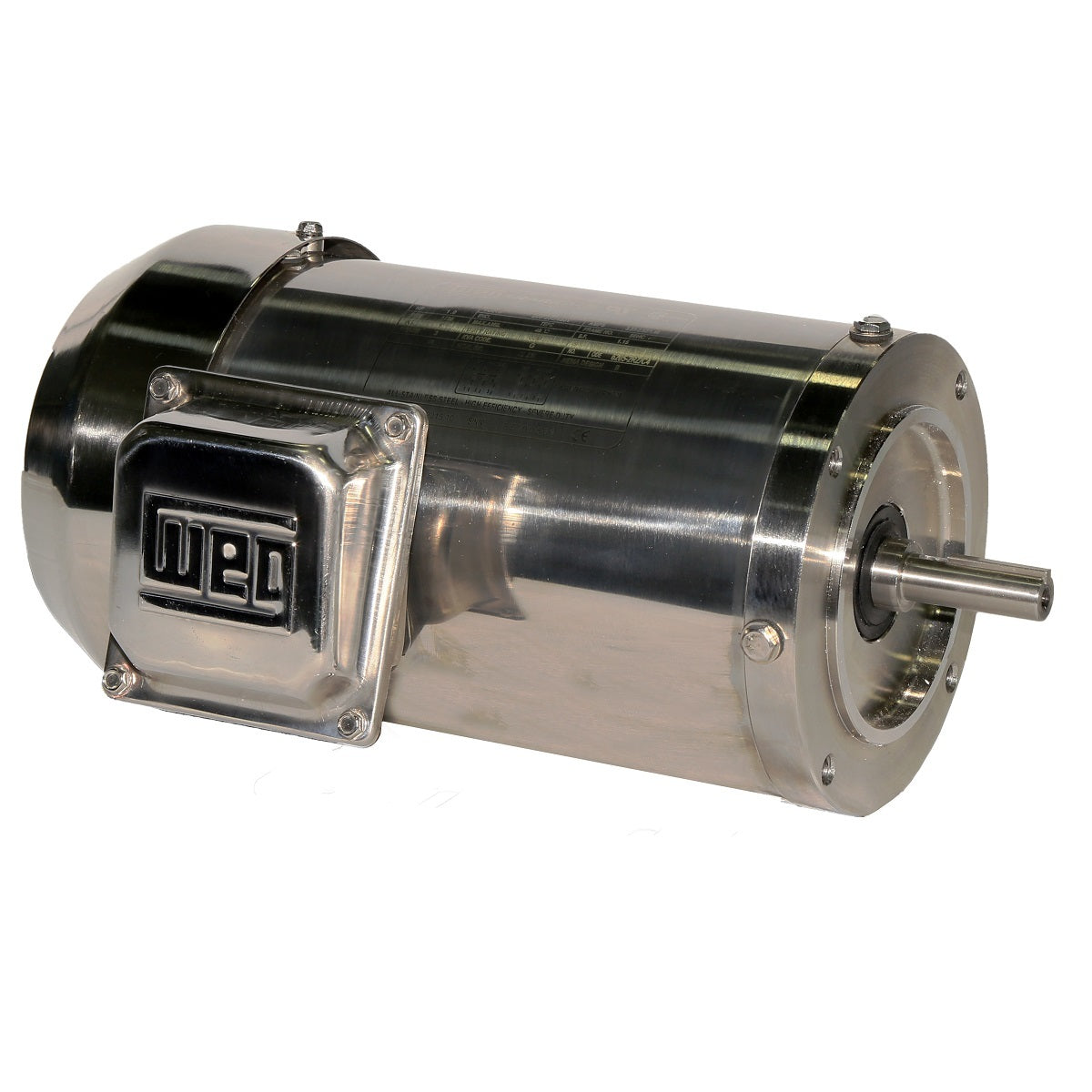

Shark NEMA Premium Efficiency 10 HP 02 215TC 230/460 V 60 Hz-TEFC-Footless
Shark NEMA Premium Efficiency 10 HP 02 215TC 230/460 V 60 Hz-TEFC-Footless
Shark NEMA Premium Efficiency 10 HP 02 215TC 230/460 V 60 Hz-TEFC-Footless
Technical Specifications
| Horsepower | 10 |
|---|---|
| Voltage | 230/460 V |
| Frame Size | 215TC |
| Enclosure | TEFC |
| Mounting | Footless |
| RPM | 3600 rpm |
| Poles | 02 |
| Efficiency | NEMA Premium Efficiency |
| Frequency | 60 Hz |
| Protection Rating | IP56 |
| Frame Material | Stainless steel |
| WEG Catalog # | 01036ET3ESS215TCFL |
Frequently Asked Questions
What applications is the Shark NEMA Premium Efficiency 10 HP 02 215TC 230/460 V 60 Hz-TEFC-Footless designed for?
The WEG Shark NEMA Premium Efficiency 10 HP 02 215TC 230/460 V 60 Hz-TEFC-Footless is engineered for harsh washdown environments including irrigation, pumping, fertigation, dairy operations, and food processing facilities where exposure to moisture, chemicals, and frequent washdowns is expected.
What is the enclosure rating on this motor?
This motor features a TEFC enclosure, providing Totally Enclosed Fan Cooled - prevents external contaminants from entering the motor while providing active cooling.
What horsepower is this motor rated for?
This motor is rated at 10 HP, operating on 230/460 V power at 60 Hz.
What voltage does this motor require?
This motor operates on 230/460 V, 02-pole, 60 Hz power supply.
Is this motor from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Details
| Catalog Number | 01036ET3ESS215TCFL |
| Product Code | 14418894 |
| Certifications | NEMA MG-1 |
