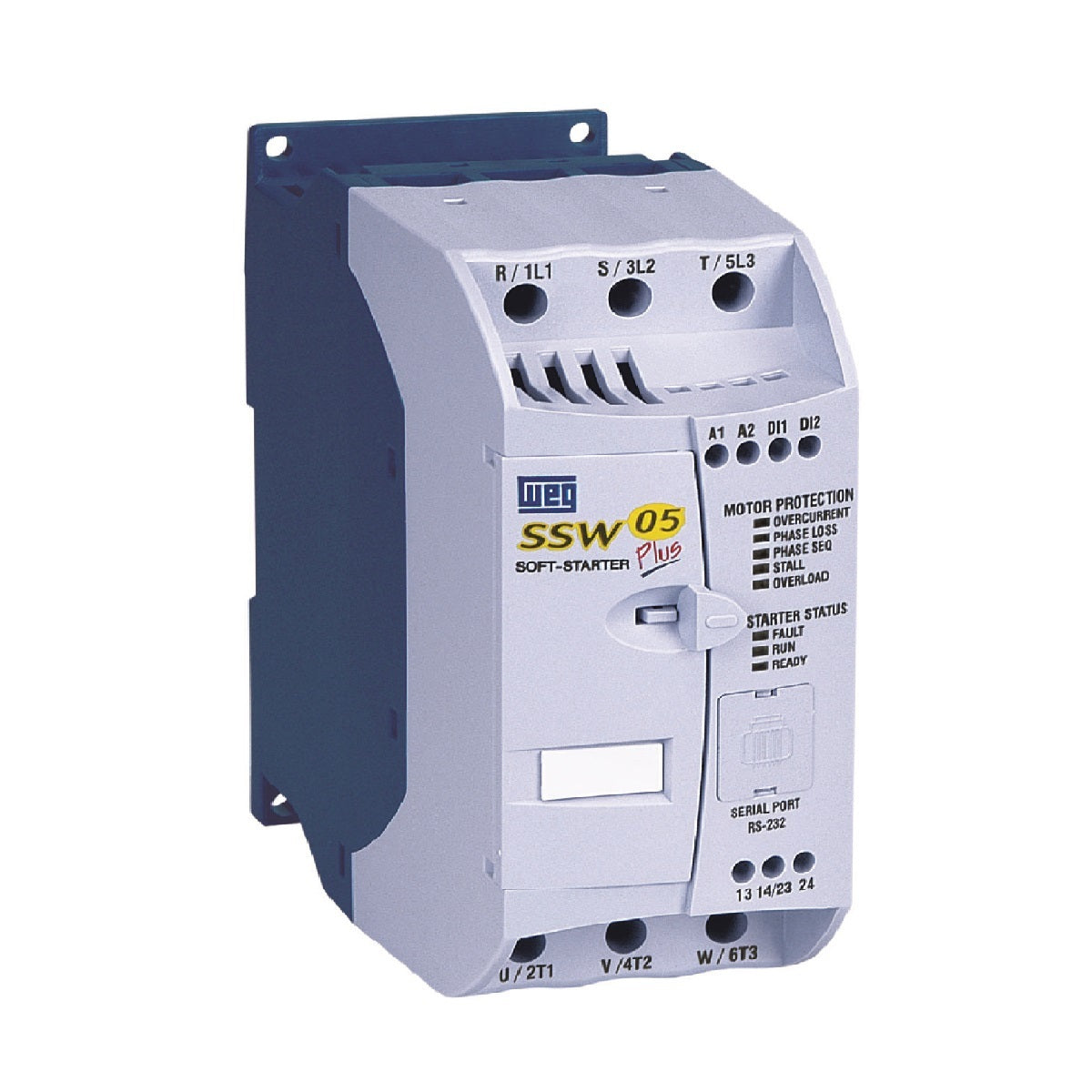

SSW050030T2246TPZ Soft Starter – 30 A
SSW050030T2246TPZ Soft Starter – 30 A
WEG soft starters are fitted with micro processors. They are high-tech and were designed to ensure the highest performance during starts and stops of induction motors.
Soft-Starters are electronic starters designed to accelerate, deccelerate and protect three-phase induction motors, controlling the voltage applied on the motor.
The SSW05 Plus Micro Soft-Starters, with DSP control (Digital Signal Processor) have been designed to supply an excellent performance during starting and stopping electric motors with excellent cost/benefit ratio.
The Operator Interface allows easy parameter setting, simplyfying the start-up and operation activities.
The SSW05 Plus Micro Soft-Starters are compact, optimizating the space in electrical panels and incorporates all protections for the driven motor.
Technical Specifications
| Starting Duty Cycle | AC-53b 3-10:890 |
|---|---|
| Voltage Ramp | Yes |
| Current Limit | No |
| Pump Control | No |
| Torque Control | No |
| SoftPLC | No |
| Certifications | UL, CE, CS, IRAM and C-TICK |
| Modbus RS-232 | Yes |
| Modbus RS-485 | No |
| WEG Catalog # | SSW050030T2246TPZ |
Frequently Asked Questions
What applications is the SSW050030T2246TPZ soft starter designed for?
The WEG SSW050030T2246TPZ soft starter provides smooth motor acceleration and deceleration for pumping, HVAC, conveyor, compressor, and process automation applications. Soft starting reduces mechanical stress on driven equipment and limits inrush current on the electrical system.
What starting modes does this soft starter support?
WEG soft starters support voltage ramp starting (gradual voltage increase) and current limit starting (caps inrush current to a configurable level). Some models also support torque control and pump-specific soft stop modes.
Can this soft starter communicate with a PLC or automation system?
Communication capabilities vary by model. The SSW050 series supports Modbus RTU via RS-232. The SSW070 series supports optional Modbus RS-232 and RS-485 modules. Check the product specifications for your specific model.
Is this soft starter from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Details
| Catalog Number | SSW050030T2246TPZ |
| Product Code | 10413823 |
| Series | SSW Series |
| Certifications | Yes |
