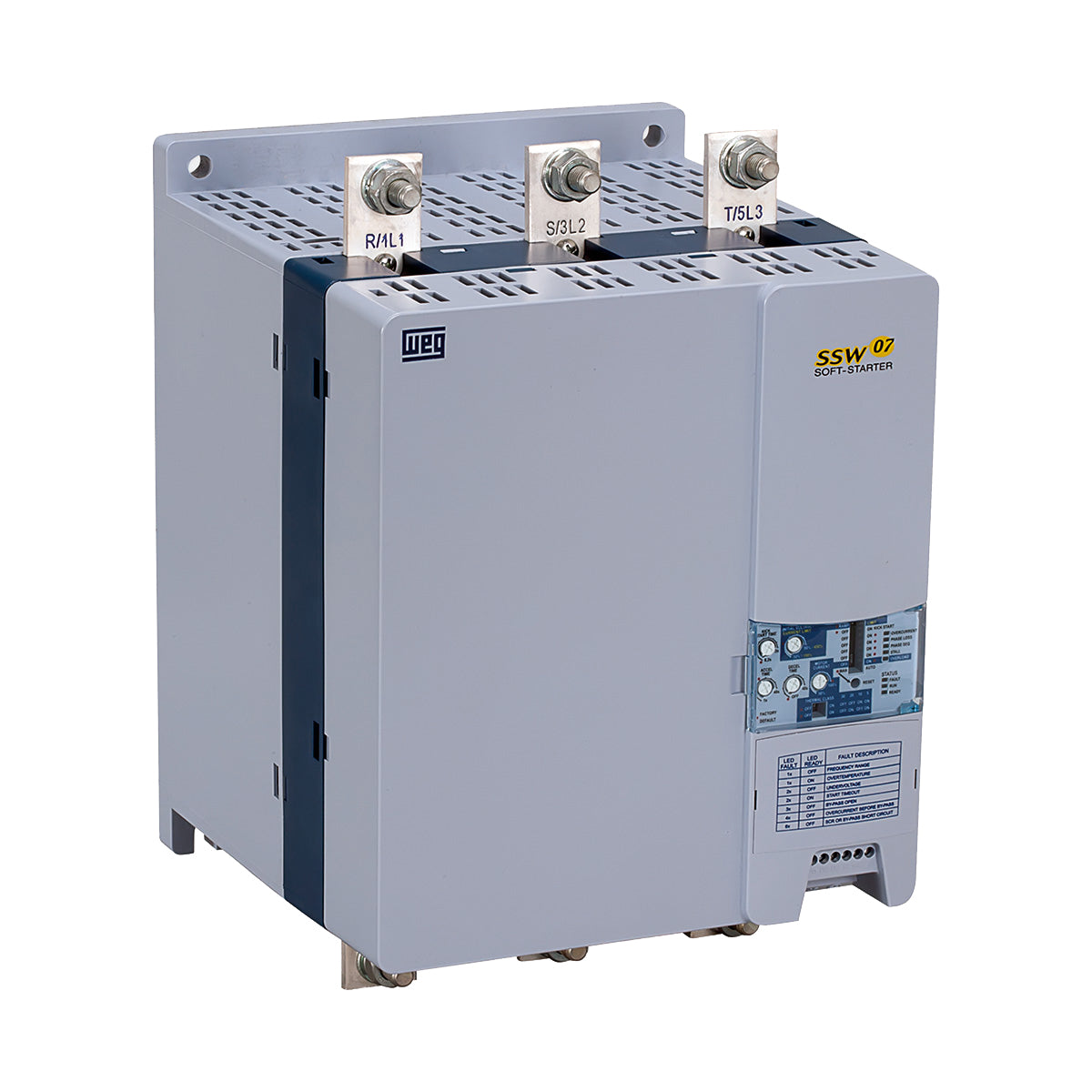

SSW070312T5SH1Z Soft Starter – 312 A
SSW070312T5SH1Z Soft Starter – 312 A
Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly.
The SSW07, with DSP (Digital Signal Processor) control was designed for high performance on motor starts and stops with an excellent cost-benefit ratio. Easy to set up, it simplifies start-up activities and daily operation.
The SSW07 is compact optimizing space in electric panels. It already incorporates electric motor protection. It adapts to customer needs through its easy-to-install optional accessories.
The SSW07 adapts to customer needs through its easy-to-install optional accessories. Thus, a keypad, a communication interface or a motor PTC input can be added to the product.
Note: SSW07 Soft-Starter Series were designed for exclusively industrial or professional use.
Technical Specifications
| Starting Duty Cycle | AC-53b 3-30:330 |
|---|---|
| Voltage Ramp | Yes |
| Current Limit | Yes |
| Pump Control | Programmable via optional |
| Torque Control | No |
| SoftPLC | No |
| Certifications | UL, CE, CS, IRAM and C-TICK |
| Modbus RS-232 | Available with optional |
| Modbus RS-485 | Available with optional |
| WEG Catalog # | SSW070312T5SH1Z |
Frequently Asked Questions
What applications is the SSW070312T5SH1Z soft starter designed for?
The WEG SSW070312T5SH1Z soft starter provides smooth motor acceleration and deceleration for pumping, HVAC, conveyor, compressor, and process automation applications. Soft starting reduces mechanical stress on driven equipment and limits inrush current on the electrical system.
What starting modes does this soft starter support?
WEG soft starters support voltage ramp starting (gradual voltage increase) and current limit starting (caps inrush current to a configurable level). Some models also support torque control and pump-specific soft stop modes.
Can this soft starter communicate with a PLC or automation system?
Communication capabilities vary by model. The SSW050 series supports Modbus RTU via RS-232. The SSW070 series supports optional Modbus RS-232 and RS-485 modules. Check the product specifications for your specific model.
Is this soft starter from an authorized source?
Yes. Laubre Automation is an authorized WEG distributor. All products ship with full WEG manufacturer warranty.
Do you offer bulk or project pricing?
Contact us for project quotes, volume pricing, or application engineering assistance.
This product is discounted once added to cart
Couldn't load pickup availability
Product Details
| Catalog Number | SSW070312T5SH1Z |
| Series | SSW Series |
| Certifications | Yes |
